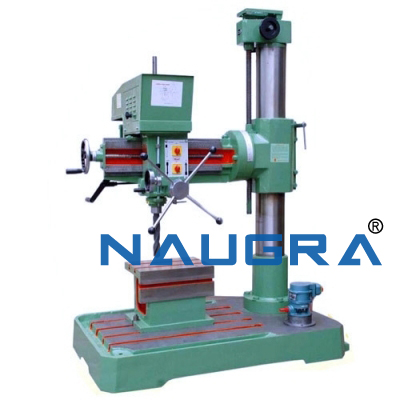

38 MM Radial Drill

38 MM Radial Drill
Product Name: 38 MM Radial Drill
Product Code: DRML0004

Description and Specification for Lab Tenders

38 MM Radial Drill.

Standard Accessories Suitable electrical s 3 Phase with Switch and Wiring for AC Supply. Motor Pulley, .
V-Belt & square Table Block. Extra Accessories :  Coolant Pump, Complete with Assembly, Machine Lamp, Drill Vice, Drill Chuck & Socket.

 SPECIFICATIONS

Drilling Capacity in Steel     32     38
Max. Dis. Spindle Centre to Column     762     762
Dia. of Column     158     158
Spindle Travel     152     152
Max. Dist. Spindle Nose to Base     914     914
Vertical Adjustment of Arm     1028     1028
Size of Box Table     368 x 305 x 305     368 x 305 x 305
Overall Height     1702     1702
No. of Spindle Speeds     8 (50 to 1735)     8 (50 to 1735)
Spindle Bore     MT No. 3     MT No. 4
Drill Motor     2 HP (1440 RPM)     2 HP (1440 RPM)
Elevating Motor     1 HP (1440 RPM)     2 HP (1440 RPM)
